Wheel ET Value

Wheel ET Value


1. What is ET Value?

The ET Value (Offset) measures the distance (in millimeters) between the wheel’s mounting surface and its centerline. This parameter determines the wheel’s lateral position relative to the vehicle’s chassis and is critical for wheel customization.

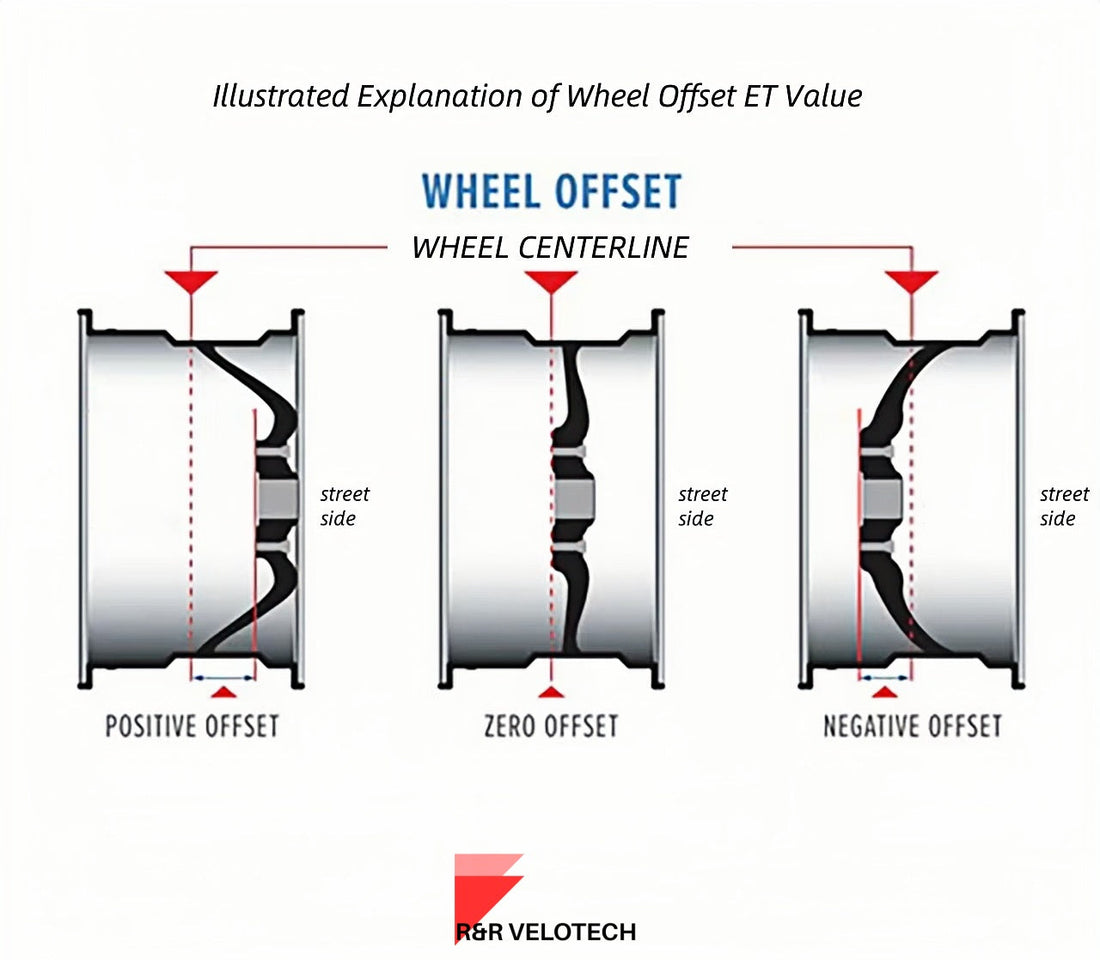

ET values fall into three categories:

  1. Positive ET (+ET): The mounting surface is closer to the wheel’s outer edge, tucking the wheel inward. Common in front-wheel-drive sedans (e.g., Honda Civic: +45mm).
  2. Zero ET (ET0): The mounting surface aligns with the centerline, often used in SUVs (e.g., BMW X5 factory setup).
  3. Negative ET (-ET): The mounting surface shifts toward the wheel’s inner side, pushing the wheel outward for a bold, wide-body stance. Popular among off-roaders (e.g., Jeep Wrangler: -12mm) and performance builds.

2. How ET Value Affects Vehicle Performance

Handling Stability

  • Lower ET (Outward Position): Widens the track width by 5-30mm, reducing body roll during corners (shorter lever effect) but increasing steering resistance by 15-20%.
  • Higher ET (Inward Position): Improves straight-line stability but risks brake caliper contact (solved with 3-5mm spacers).

Mechanical Load

  • Reducing ET by 10mm increases axle bearing load by 8-12%, potentially shortening bearing lifespan.
  • Deviations beyond ±15mm from factory ET require recalibrating wheel alignment (e.g., toe angle ±0.5°).

Aesthetics vs. Functionality

  • Off-roaders use -ET wheels to protrude tires 5-8cm beyond fenders, protecting against rock damage.
  • Street builds typically stay within +35mm to +15mm for balanced handling and curb clearance.

3. Golden Rules for ET Value Modification

Safety First

  • Max deviation: ±10mm for sedans, ±15mm for SUVs. Beyond this, consult an engineer.
  • Post-modification tests:
  • Full-lock steering check (for inner fender clearance).
  • Emergency braking at 60km/h (detect wheel vibrations).

System Matching

  • For every 5mm ET reduction, increase tire width by 10mm (e.g., +45mm ET with 215mm tires → +35mm ET with 225mm tires).
  • Wide-body kits allow aggressive ET values (e.g., Volkswagen Golf GTI widebody: -5mm).

Precision Matters

    • Measure existing ET with laser tools (error margin: ±1mm).
    • Cross-reference databases like Wheel-Size.com (covers 95% of factory specs).

4. Future Trends: The Smart Revolution of ET Values

As EVs rise, ET design now merges aerodynamics and energy efficiency:

  • Tesla Cybertruck: Dynamic ET adjustment system retracts wheels at high speed, cutting drag (7% range boost).
  • Michelin Active Wheel: Self-adjusting ET (±8mm) adapts to road conditions in real time.

Conclusion
The ET value—a seemingly cold number—is a precise dance of engineering and aesthetics. From shaving 0.1 seconds off lap times to surviving off-road trails, every millimeter redefines the dialogue between driver and machine. Remember: Customization isn’t a data frenzy but a harmony of math and artistry.
